Regulating manifold
- Connection of wells or horizontal biogas/leachate lines
- Made in HDPE

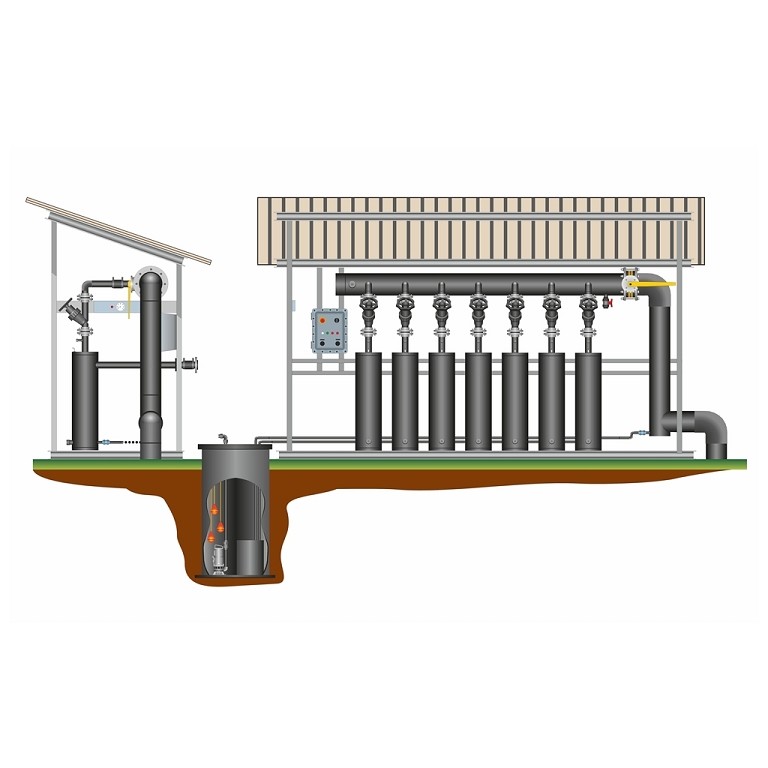

Connects wells or horizontal biogas capture lines, used to adjust biogas flow and check quality for each inlet line. It is fitted with fine flow adjustment valves and a condensate discharge system shared by all inlets located on the outlet from the main manifold.
Features:
• Material: high density polyethylene (HDPE)
• Support frame in galvanized/stainless steel
• Adjustment valve with flanged or threaded angled seat
• Manual control socket on each inlet
• Variable number of inlets depending on customer requirements
• Condensate separator on manifold outlet
• Condensation collection well fitted with hydraulic guard
• Condensate drainage by gravity or using a pump
• Possibility of implementing manifolds for different diameters and sizes.
